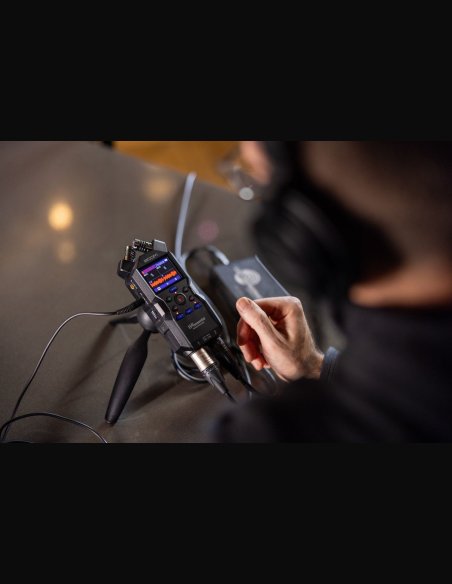

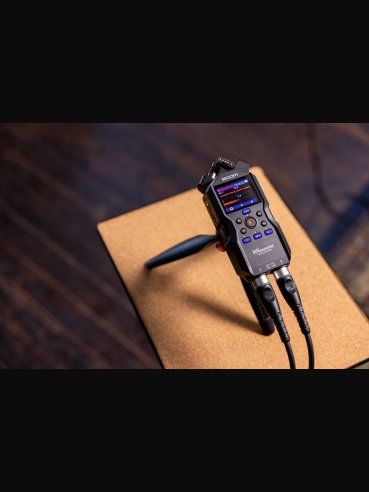

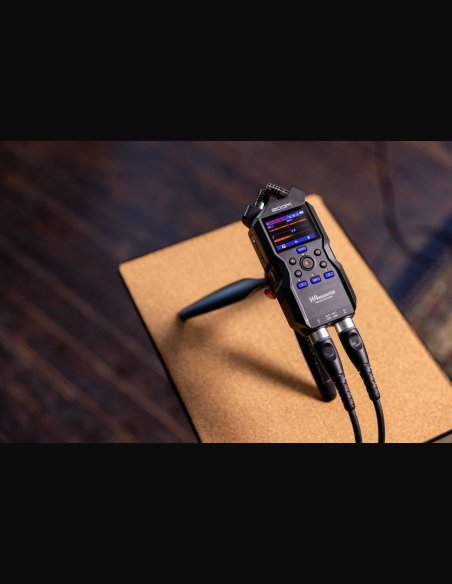

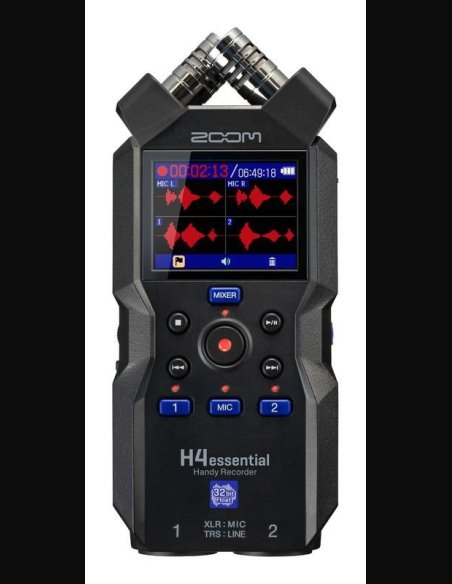

Zoom H4e Registratore Palmare
2 Articolo Articoli
Attenzione: Ultimi articoli in magazzino!
Disponibile dal: 07/03/2024
Inputs | Built-in mic (stereo) | 1 |
---|---|---|
XLR/TRS | 2 | |
MIC/LINE IN | 1 | |
Outputs | Headphones | 1 |
Built-in speaker (mono) | 1 | |
Built-in mic | 90º XY stereo format | |
---|---|---|
Directionality | Unidirectional | |
Sensitivity | –43 dB/1 Pa at 1 kHz | |
Maximum sound pressure input | 130 dB SPL | |
INPUT1-2 | Connector | XLR/TRS combo jacks ×2 |
(XLR:2 HOT TRS:TIP HOT) | ||
Input gain | Adjustment unnecessary | |
Input impedance | MIC: 3.8 kΩ or more | |
LINE: 39 kΩ or more | ||
Maximum input level | MIC: +4 dBu | |
LINE: +24 dBu | ||
Phantom power | +48 V | |
Channel total 10 mA or less | ||
Equivalent input noise | MIC: -120 dBu or less(IHF-A) @150 Ω input | |
LINE: -95 dBu or less(IHF-A) @600 Ω input | ||

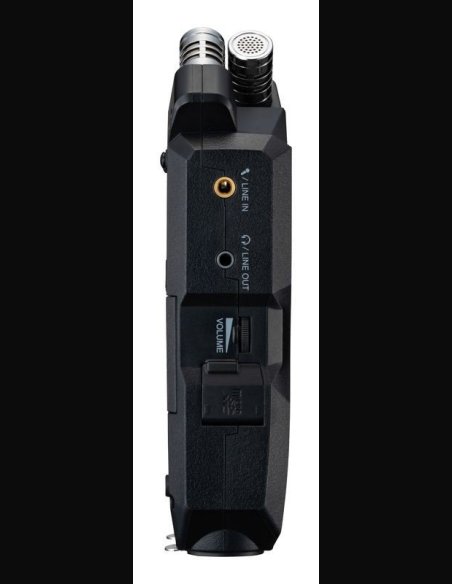

MIC/LINE IN | Connector | Stereo mini jack |
(supports plug-in power) | Input gain | Adjustment unnecessary |
Input impedance | 2 kΩ or more | |
Headphones | Connector | Stereo mini jack |
---|---|---|
Maximum output level | 20 mW + 20 mW(into 32 Ω load) | |
Output impedance | 15 Ω or less | |
Built-in speaker | Type | 20 x 30mm elliptical dynamic speaker |
Effective maximum output | 250mW | |
Maximum simultaneous recording tracks | 4 |
Maximum simultaneous playback tracks | 4 |
Recording formats | WAV |
44.1/48/96 kHz, | |
32-bit float mono/stereo | |
BWF and iXML formats supported | |
Recording media | 4-32GB cards compatible with the microSDHC specification |
64GB–1TB cards compatible with the microSDXC specification | |
2.0-inch full-color LCD | 360 x 240 |
---|---|

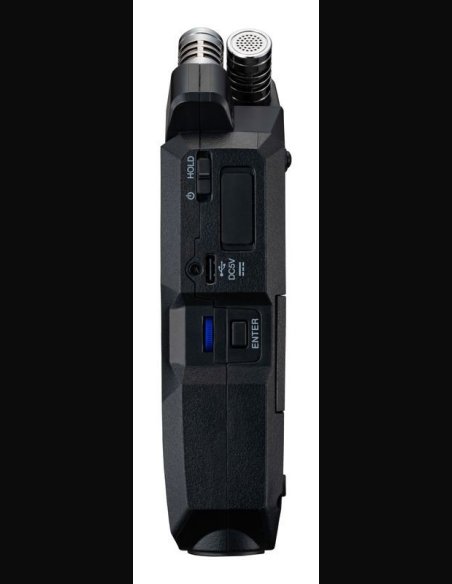

Connector | USB Type-C |
---|---|
• Use a USB cable that supports data transfer. | |
USB Mic | USB 2.0 High Speed |
44.1/48 kHz | |
24-bit /32-bit float | |
4-in/2-out | |
File transfer | USB2.0 High Speed |
Dedicated wireless adapter | ZOOM BTA-1 |
---|---|

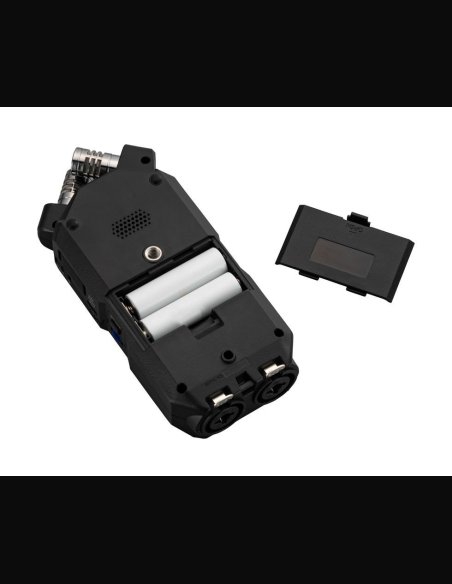

2 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
---|---|
AC Adapter | ZOOM AD-17:DC 5V / 1 A |
• USB bus power is supported. | |
Alkaline batteries | About 9 hours |
---|---|
NiMH batteries (1900 mAh) | About 9 hours |
Lithium batteries | About 19 hours |
48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Alkaline batteries | About 2 hours 30 minutes |
---|---|
NiMH batteries (1900 mAh) | About 4 hours |
Lithium batteries | About 8 hours |
48 kHz/32-bit float, phantom power off, headphones used (33Ω load), no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Alkaline batteries | About 40 minutes |
---|---|
NiMH batteries (1900 mAh) | About 1 hour 30 minutes |
Lithium batteries | About 3 hours 30 minutes |
48 kHz/32-bit float, phantom power off, headphones used (33Ω load), no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Power consumption | 3 W maximum |
---|---|
Dimensions | 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H) |
Weight (including batteries) | 243 g |
Note: 0 dBu = 0.775 Vrms
